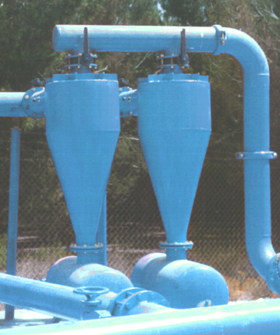

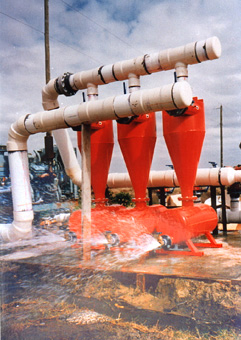

Hydrocyclones series 5000 are extremely efficient separators of
sand and solid particles from water or liquids, maintaining a
small head loss.
Series
5000 Hydrocyclones use a tangential injection flow process, enhancing
the centrifugal forces and moving solid particles outwards.
The dispersed particles move downwards in a spiral path into an
underflow chamber, while purified liquid moves upwards to the
center of the spiral, towards a top mounted outlet.
Construction
Materials
Separation Body
The separation body is made from plated carbon steel,
stainless steel or vulcanized steel.
Products for high-temperature and high-pressure or highly corrosive
environments are also available.
Pressures
Maximum operating pressure: 8 bar.
Minimum operating pressure: 1.5 bar.
The hydrocyclone separator is designed for easy operation and
maintenance and does not contain any moving parts.
The underflow chamber may be drained manually or automatically
at specified time intervals, without interfering
with the proper functioning of the hydrocyclone.
Models
|
Model
|
Inlet
/ Outlet Diameters
|
Recommended
Flow Rate
|
|
inch
|
mm
|
m³/h
|
U.S.
gpm
|
|
50307
|
¾
|
20
|
2
- 3.5
|
8.8
- 15
|
|
50410
|
1
|
25
|
3.5
- 7.5
|
15
- 33
|
|
50615
|
1½
|
40
|
7.5
- 12
|
33
- 53
|
|
50820
|
2
|
50
|
11
- 17
|
48
- 75
|
|
50830
|
3
|
80
|
18
- 34
|
79
- 150
|
|
51243
|
4
in/3 out
|
100
in/80 out
|
35
- 52
|
154
- 229
|
|
51640
|
4
|
100
|
52
- 82
|
229
- 361
|
|
52060
|
6
|
150
|
98
- 160
|
431
- 704
|
|
52460
|
6
|
150
|
140
- 230
|
616
- 1012
|
|
53080
|
8
|
200
|
230
- 360
|
1012
- 1584
|
