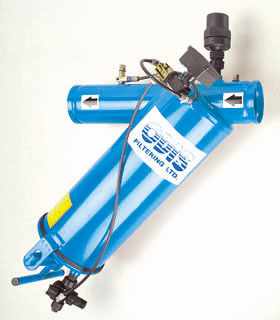

Automatic Screen Filters

ODIS circulating filters are designed to filter fluids containing inorganic and organic matter, including sand, for different industrial applications.

Applications

Constant flow rate systems such as water supply lines, industrial process water, cooling water, industrial aqueous or non-aqueous fluids to protect nozzles, pumps and valves from clogging.

Construction Materials

  • Filtering Element
    The filtering screen is made from stainless steel and available in various mesh sizes.
    Some models may be supplied with mesh size down to 5 micron.
  • Filter Housing
    Epoxy coated carbon steel, stainless steel or vulcanized steel.


Working Pressures

Maximum operating pressure: 8 bar.
Minimum operating pressure: 1.5 bar.
Extra high-pressure filters may be ordered

Models

Model
Inlet / Outlet Diameters
Recommended Flow Rate
inch
mm
m³/h
U.S. gpm
8015
8915
40
7 - 15
30 - 57
8020
8920
2
50
13.5 - 25
60 - 110
8030
8930
3
80
24.5 - 45
108 - 198
8040
8940
4
100
41 - 75
180 - 330
8060
8960
6
150
81 - 150
357 - 660
8080
8
200
164 - 300
722 - 1320
8010
10
250
272 - 500
1197 - 2201




Series 8000



Series 8000 Array
