Brush Screen Filter
Series
840 & 841

APPLICATIONS

  • Used as Control Filter and Preliminary Filter in agriculture

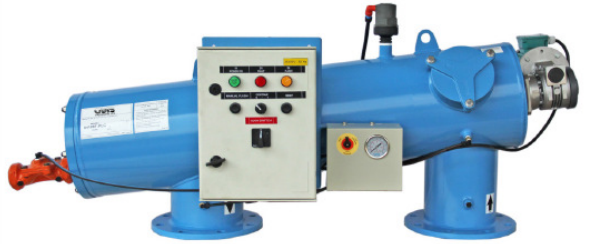

Automatic Model 841

Manual Model 840


Series 840 and Series 841 Brush Filters have a mechanism that brushes the debris off the screen surface.
Debris are flushed through the drain valve.

The brushing mechanism is activated manually or automatically, depending on the model.

Flow Rates and Physical Characteristics

Series 841

New Model
Old Model
Inlet / Outlet Diameter
Max.  Flow Rate
 Screen Area

Weight

inch
mm
up to... m³/h
 up to... gpm
Sq.cm
 Sq.inch Kg
OMB8904
84104 / 841B04
4
100
80
350
 3500 540 92
 OMB8906
84106 / 841B06
6
150
160
705
 4800 750 113
OMB8908
84108 / 841B08
8
200
300
1320
 6000 930 114
OMB8910
84110 / 841B10
 10 250 500 2200 7500 1160 270
 OMB8912
84112 / 841B12
 12 300 650 2860 10400 1610 400
 OMB8914
84114 / 841B14
 14 350 1000 4400 10400 1610 415
OMB8920
84120 / 841B20
 20 500 1600 7075 16200 2510 660
OMB8924
84124 / 841B24
 24 600 1800 7925 16200 2510 685

Series 840

Model
Inlet / Outlet Diameter
Max.  Flow Rate
 Screen Area

Weight

inch
mm
up to... m³/h
 up to... gpm
Sq.cm
 Sq.inch Kg
84015-I
1½"
40
15
66
 1500 230 15
84002-I
2"
50
25
110
 1500 230 17
84003-I
3"
80
50
220
 1500 230 20
84004-I 4" 100 80 350 2200 340 42
84004 4" 100 80 350 3500 540 82
84006 6" 150 160 700 4800 750 203
84008 8" 200 300 1300 6000 930 104
* Automatic

Technical Specifications

  • Max. recommended working pressure: 120 psi (8 bar)
  • Max. pressure: 150 psi (10 bar)
